Fixed Point Calculations and Finding Roots

Fixed Points

• c is a fixed point in a function f if
  • c belongs to the domain and codomain of f
  • f(c) = c
  • The function returns the same value of its argument
• This can be calcuated by iterating a number of times and looking for convergence
• We can interpret this as ƒinding the intercept with y=x

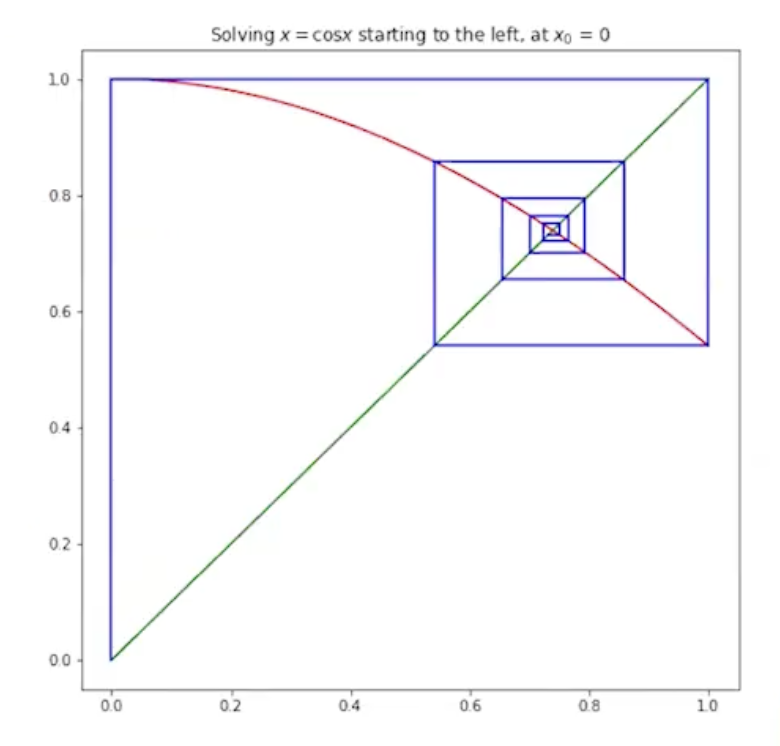

Example of fixed point of cosx

double fixed_point(double f(double), int max_it, double init) {
  double x = init;
  for (int i = 0; i < max_it; i++)
    x = f(x);
  return x;
}

• The code above shows a higher order fixed point calculation function - see the syntax for higher order functional arguments in C++

fixed_point([](double x) -> double { return std::cos(x); }, 100, 0.75) // calculating the fixed point of the cosine function

• Again seeing lambda function syntax in C++

Finding Roots of Equations Iteratively

• To find the roots of an equation y=f(x) (the points where f(x) = 0) iteratively, we can:
  • Convert it to a form x=g(x)
  • Start with an initial guess x0~=r
  • Iterate; x_(n+1) = g(x_n) for n=1,2,3...
• If this sequence converges to a limit r and the function g is contiguous at x=r then the limit r is a root of the equation

double fixed_point(double f(double), int max_it, double init, double epsilon = 1e-10) {
  double x = init;

  for (int i = 0; i < max_iterations; i++) {
    double x1 = f(x);

    double error = fabs(x1-x);
    if (error < epsilon)
      break

    x = x1;
  }

  return x
}

• We introduce a new parameter epsilon which measures the difference between the last and current iteration, breaking when this gets small enough
• C++ has default arguments!
• If we want to get more accuracy in our calculation, we can’t rely on double, hence there are libraries like Boost that offer replacement types with higher accuracy, e.g. boost::multiprecision::cpp_bin_float_100
  • This requires a template function

Template Functions

• Template classes were discussed in the previous lecture, now we have templated (generic) functions

template <typename Float>
Float fixed_point(Float f(Float), int max_it, Float init, Float epsilon = 1e-10) {
    Float x = init;
    for (int i = 0; i < max_it; i++) {
        Float x1 = f(x);
        if (fabs(x1-x) < epsilon) break;
        x = x1;
    }
    return x;
}

• This uses a generic type variable Float

template <typename Data>
std::pair<Data, int> fixed_point(Data f(Data), bool cond(Data, Data), int n, Data init) {
    Data x = init;
    for (int i = 0; i < n; i++) {
        Data x1 = f(x);
        if (cond(x, x1)) return {x1, i}; // we also generalise the break condition for flexibility
        x1 = x;
    }
    return {x, n};
}

// example of using this final fixed point function
using float_type = double;
fixed_point(
    [](float_type x) { return cbrt(sin(x)); },
    [](float_type prev, float_type curr) { return fabs(curr - prev) < 1e-10; },
    1000,
    float_type(1.0)
)

• We can improve further by generalising the convergence condition and returning the number of iterations run

Finding Square Roots

• The square root of a number a can be found by iteratively averaging the current value and a/current val; 0.5(xn+a/xn)
• When xn=a^0.5, we have 0.5(a^0.5+a/a^0.5) = 0.5(2a^0.5) = a^0.5 = sqrt(a)
• This can be calculated using the fixed point algorithm

template <typename Float>

Float sqrt(Float a, int n, Float init) {
    return fixed_point([a](Float x) { return average(x,a/x); }, n, init);
}

Other Methods for Finding Roots

• There are also some other methods for finding roots of equations other than the iterative approach outlined above
• These are:
  • Newton Rhapson
